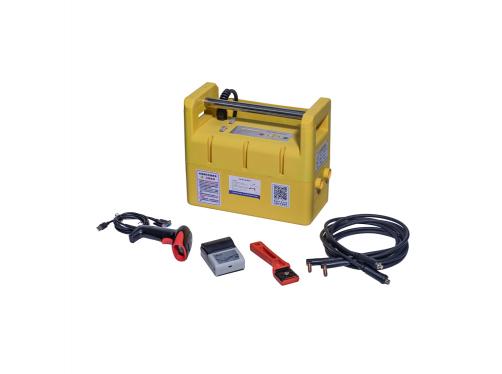

HDPE Electro Fusion Machine
> > > >
HDPE Electro Fusion Machine
HDPE Electro Fusion Machine
HDPE Electro Fusion Machine
Suitable for connecting PE pipes and fittings with coupling which used for gas and water supply.
Contact Us Request a quote
Share This Product:
  • Application
  • Feature

  • 1. Suitable for welding of plastic pipes and/or fittings made of PE can be operated in any complex work condition.

  • 2. Consists of basic frame, planning tool, heating plate and support for planning tool and heating plate.

  • 3. Removable PTFE coated heating plate with separate temperature control system.

  • 4. Electric planning tool.

  • 5. Be made of lightweight and high strength material; simple structure, small and delicate, user friendly.

HOW TO USE
  • 1
    Preparation work
    Firstly, ensure that the electric fusion welding machine is in good working condition
    Check if the power supply, heating plate, control panel, etc. are functioning properly
    Choose the appropriate die head based on the specifications and models of the welded pipe
  • 2
    Adjust temperature
    Plug in the power socket and press the controller switch button to adjust to the appropriate welding temperature
    The general temperature should be controlled at around 220-230 degrees. Wait for heating to the set temperature
    The heating time depends on the specifications and wall thickness of the pipe. Generally, the hot melt time for D20 * 2.8 S3.2 pipes is 3-5 seconds.
  • 3
    Inserting pipe fittings
    Insert the pipe fittings that need to be hot-melt into the mold head and observe the hot-melt condition
    When the solder paste comes out, quickly pull it out and connect the two ends.
    After welding is completed, the pipe must be fully cooled before moving. During the cooling period, the next welding can be carried out

  • Three type of Temperature control, constant Temperature, manual single and double temperature control, Individual temperature control of heating mirror. Functions temperature adjustment, temperature display, overheating alarm and automatic retrieve of environment temperature, heating mirror and sockets coated PTFE, trustable quality.

  • Reasonable structure.
    Compact and good exterior.
    Simple and convenient operation.
    International warranty 12 months.

Model

RH200

RH 315

RH 500

Welding Range

20-200mm

200-315mm

20-500mm

Input Voltage

190V~240V

Frequency

40HZ-60HZ

Output Voltage

10V~48V

Control Type

Constant Current/Constant Volt

Time Adjust Range

1~9999 Second

Time Deviation

≤1%

Relative Humidity

≤80%

Weight

20KG

20KG

22KG

Buyer Feedback
Feedback from contact with us
Related Product

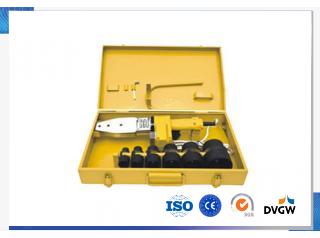

PE/PPR Socket Fusion Machine
PE/PPR Socket Fusion Machine
Suitable for connecting PE/PPR pipes and fittings with coupling which used for gas and water supply. ...
Read more >

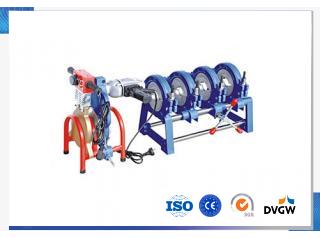

PE/PPR Welding Machine (big) Manual Type
PE/PPR Welding Machine (big) Manual Type
Suitable for connecting PE/PPR pipes and fittings with coupling which used for gas and water supply. ...
Read more >

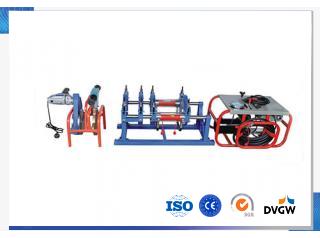

PE/PPR Welding Machine Hydraulic Type(for big size)
